vacuum vulcanizing press

(1)

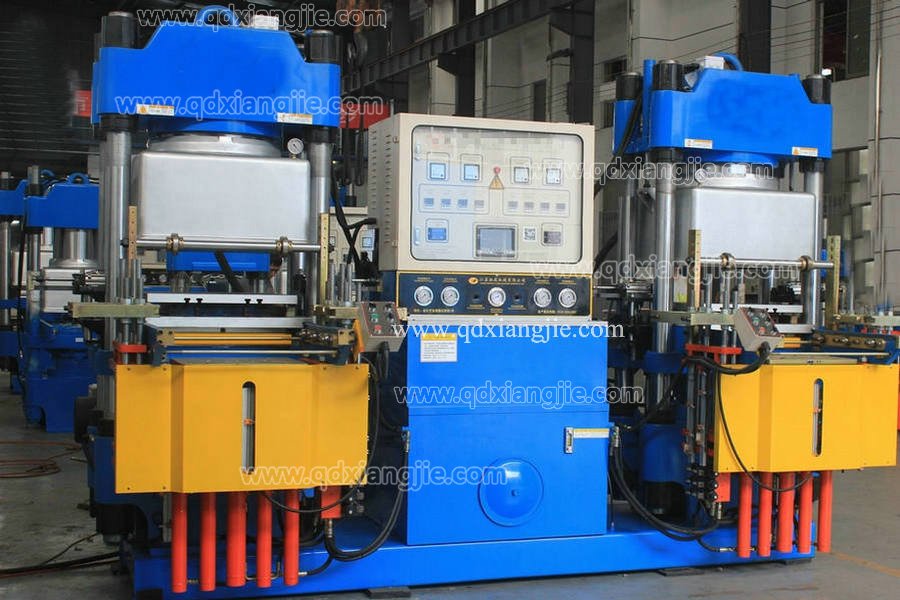

Vacuum Vulcanizing Press
Vacuum Vulcanizing Press

Vacuum Vulcanizing Press

Product Summary: Dispersion kneader

Function/performance characteristics:

Full automatic

Mold ejecting

Automatic mould opening device

applications:

1.Ideal for the production of rubber or silicone parts such as O-rings, seals, keyboards, connectors, bushings, and rubber medical products.

2.Suitable for various industries including automotive, electronics, medical, and more.


Product Category: Vacuum Vulcanizer Machine

Description

The Main Technical Parameter

产品型号
Type
YM-HV2-150YM-HV2-200L(H)YM-HV2-300L(H)
公称合模力(MN)
Total pressure
1.50 2.0 3.0
热板规格(mm)
Plate size
450×450500×500650×650
热板间距(mm)
Daylight
330 360 400
电机功率(kw)
Main motor power
5.5 7.5 11
真空电机(kw)
Vacuum motor power
2.2 2.2 2.2
外形尺寸(mm)
Overalldimension(LxW×H)
3040×1400×24503260×1500×2990(3040)3630X1700×2990(3040)
重量(kg)
Weight
6000 10000 15000


All specification can be customized according to requirements.
