rubber bridge bearing vulcanizing machine(column strucutre)

(1)
Product

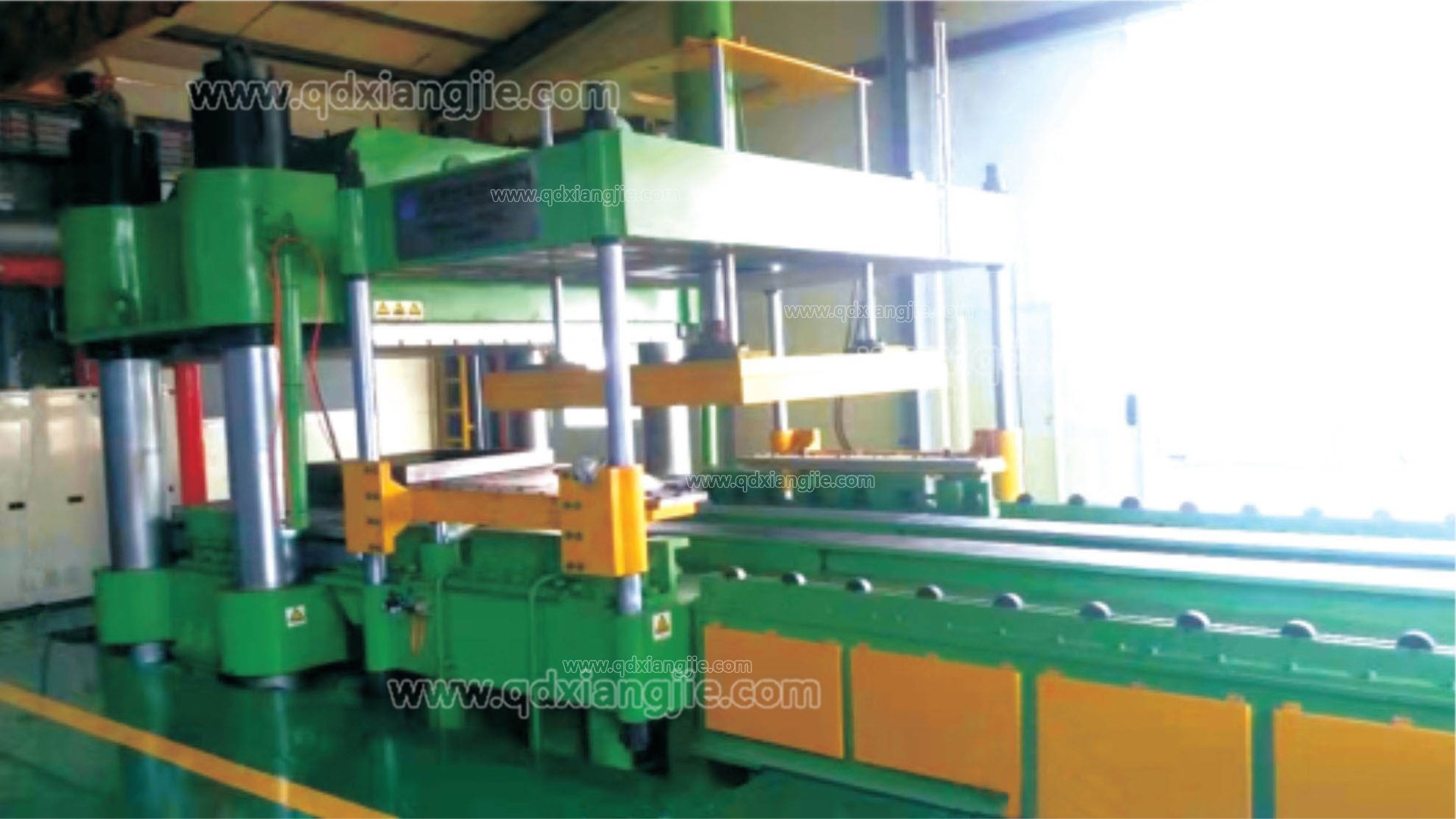

Rubber bridge bearing vulcanizing machine(column strucutre)
Rubber bridge bearing vulcanizing machine(column strucutre)

Rubber bridge bearing vulcanizing machine(column strucutre)

Product Summary: Rubber bridge bearing vulcanizing machine(column strucutre)

Function:

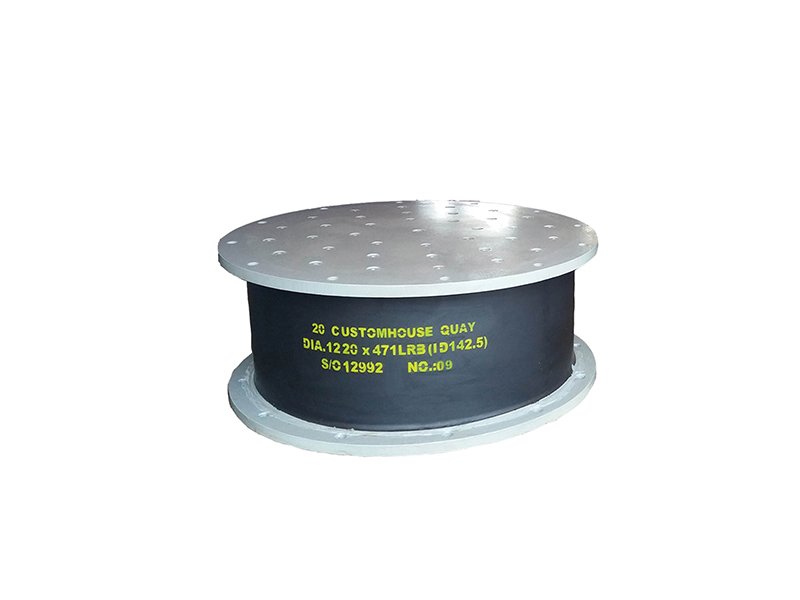

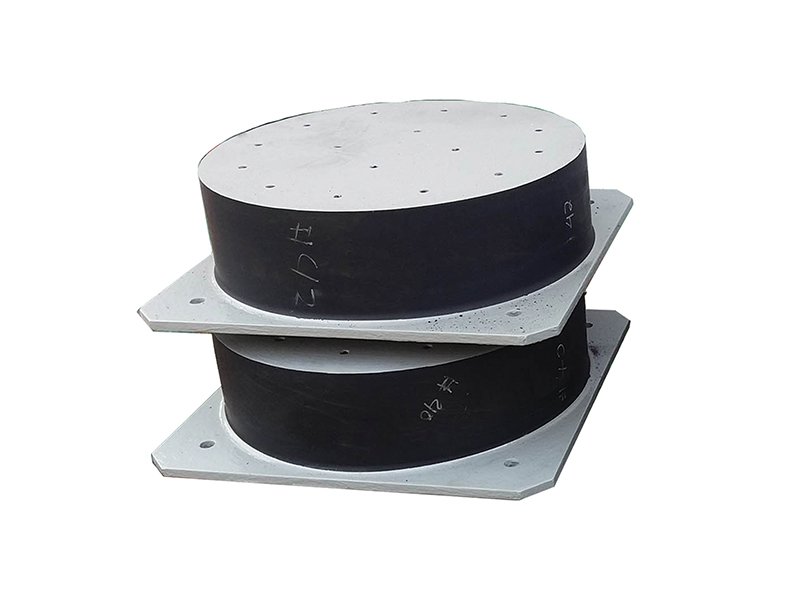

Mainly used for the production of seismic isolation equipment for both buildings and bridges.

And heat-insulation system can be added according to user's requirements. Machine is characterized by energy-saving, environmental protection and aesthetic appearance.

This machine integrates advanced technology and innovative design to ensure high-quality and efficient production of rubber bridge bearings, which are crucial components in bridge construction for supporting and distributing loads.

Product Category: Column Vulcanizer Machine

Description

The Main Technical Parameter

产品型号TypeXLB-Q1200X1200XLB-Q1600X1600XLB-Q3000X3000
公称合模力Total Pressure(Tons)1000 1500 4500
热板规格Hot plate specifications(mm)1200X12001600X16003000X3000
工作间距Working spacing(mm)600 800 1000-1200
工作层数Working layers

柱塞行程Pisto Stroke(mm)600 800 1000-1200


All specification can be customized according to requirements.
