hydraulicl mechanical doublelayers automatic mould ejecting vulcanzing press

(1)
Hydraulicl Mechanical doublelayers automatic mould ejecting vulcanzing press
Hydraulicl Mechanical doublelayers automatic mould ejecting vulcanzing press
Hydraulicl Mechanical doublelayers automatic mould ejecting vulcanzing press
Hydraulicl Mechanical doublelayers automatic mould ejecting vulcanzing press

Hydraulicl Mechanical doublelayers automatic mould ejecting vulcanzing press

Product Summary: Hydraulicl Mechanical doublelayers automatic mould ejecting vulcanzing press

Function/performance characteristics:

Mould ejecting device works with hydraulic and mechanical type.Customers can choose according to their needs.The new design concept,strong technical force and advanced manufacturing processes of the company ensures that each device can be manufactured to meet customer's individual requests."


Product Category: Frame Vulcanizer Machine

The Main Technical Parameter

产品型号TypeXLB-Q2600×2800XLB-DQ1500×2000XLB-D03000×3000
公称合模力Total Pressure(Tons)2500 1600 3000
热板规格Plate Size(mm)2600×2800×901500×2000×903000×3000×100
热板间距Daylight (mm)200 200 300
工作层数Layers
柱塞行程Piston Stroke(mm)400 400 600
合模速度Close Mould Speed (mm/s)≥16≥16≥16
开模速度Open Mould Speed(mm/s)≥35≥35≥35
液压缸直径Cylinder Diameter (mm)φ700φ550Φ750
液压缸数量(组)Cylinder NO.(Pcs)
电机功率Motor Power (kw)11.0×3+2211.0+1511.0×2+22


All specification can be customized according to requirements.

Application

12

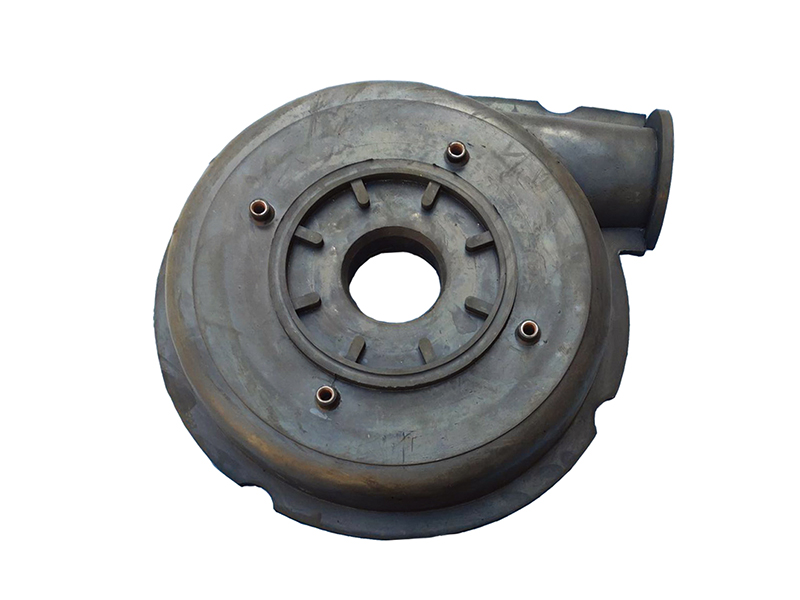

7
