2500x2500-3000T support vulcanizer

(1)

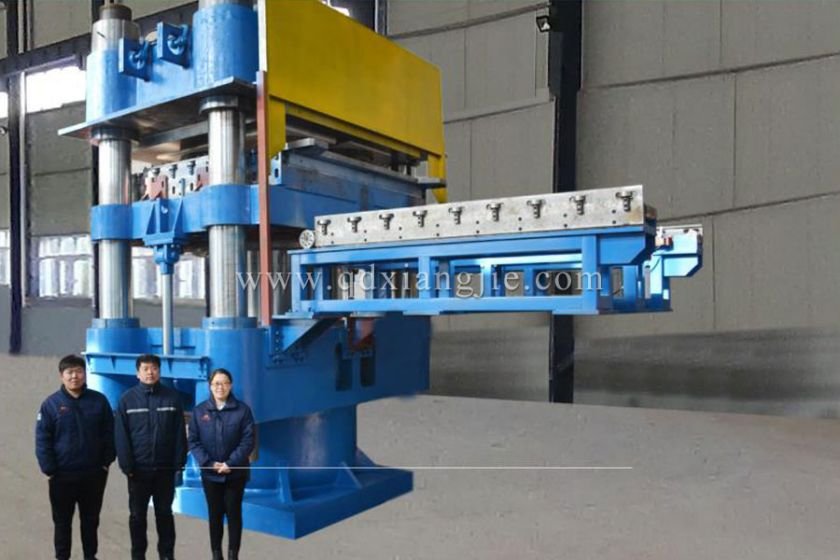

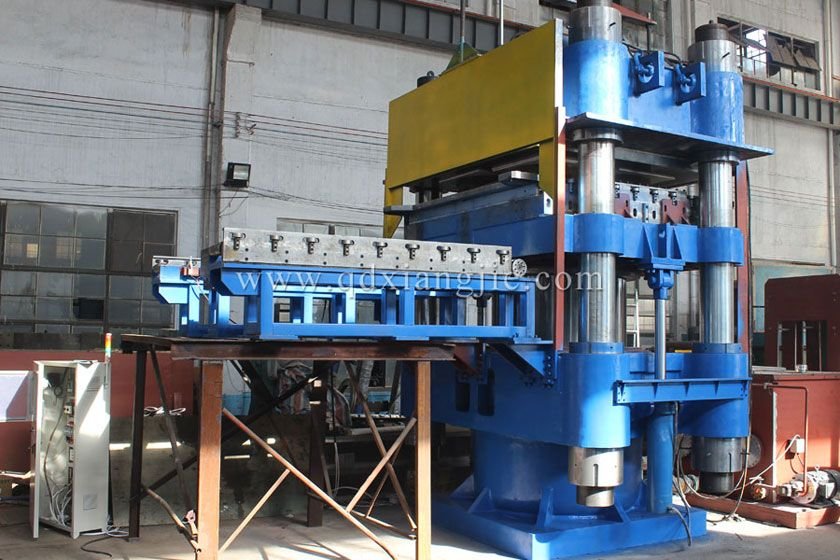

2500x2500-3000T support vulcanizer


Product use:

Specially used for building construction, large bridge vibration reduction and isolation bearing
Product specifications:
Equipment specification: 2500x2500
Equipment pressure: 2500T
Oil cylinder: φ1300
Equipment lifting speed: 20mm


Product features:
1. The equipment is computer-aided design, and the finite element analysis is carried out as a whole. The overall structure is stable and reliable.
2. Advanced electrical control: PLC manual automatic dual-mode control, man-machine interface parameter input, setting, display, intelligent control of the process, can realize pressure and temperature time curve recording, can store 100 sets of mold process parameters, and use at any time.
3. New hydraulic power system: fast clamping speed, high efficiency and energy saving, superior pressure holding performance, sensitive action and stable operation.
4. Unique temperature control process: special process design of hot plate structure, advanced temperature control system.
5. The equipment is equipped with a thermal insulation and environmental protection shell, which can save 10%-20% of heating energy. The single-cylinder design has stable and concentrated pressure.
