4000x1600-2000T heat exchanger seal ring plate vulcanizer

(1)

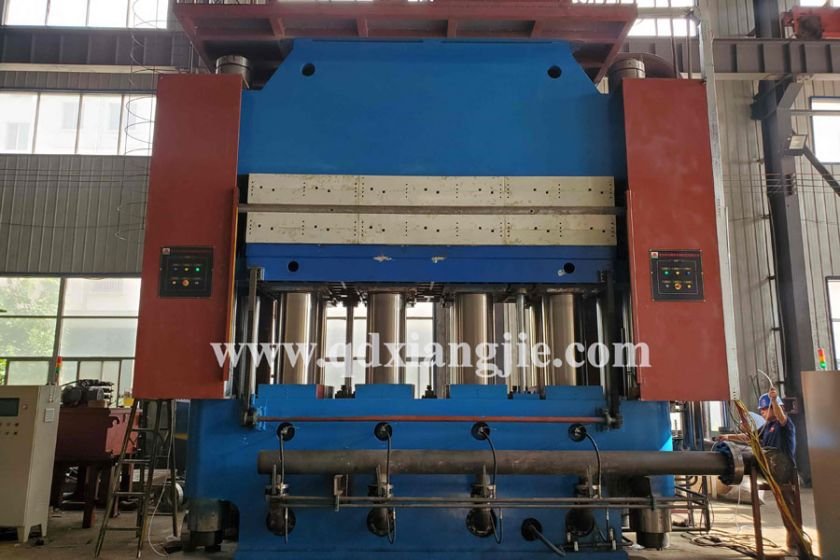

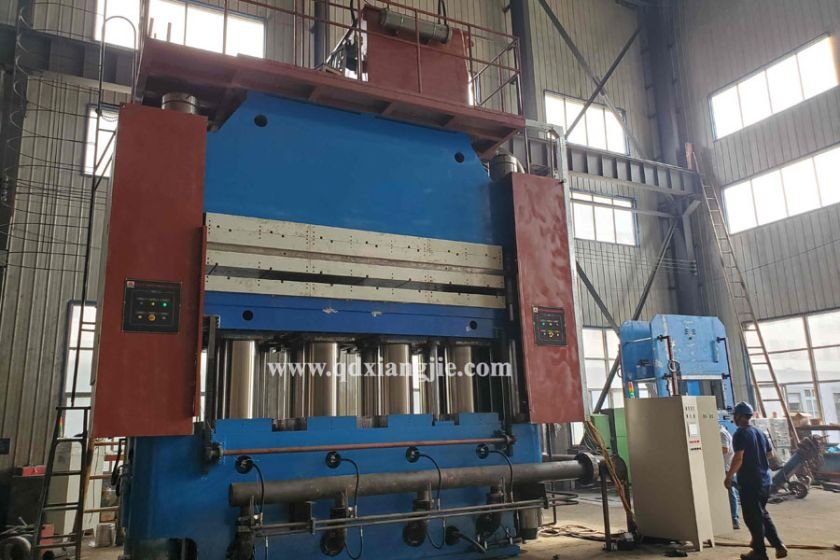

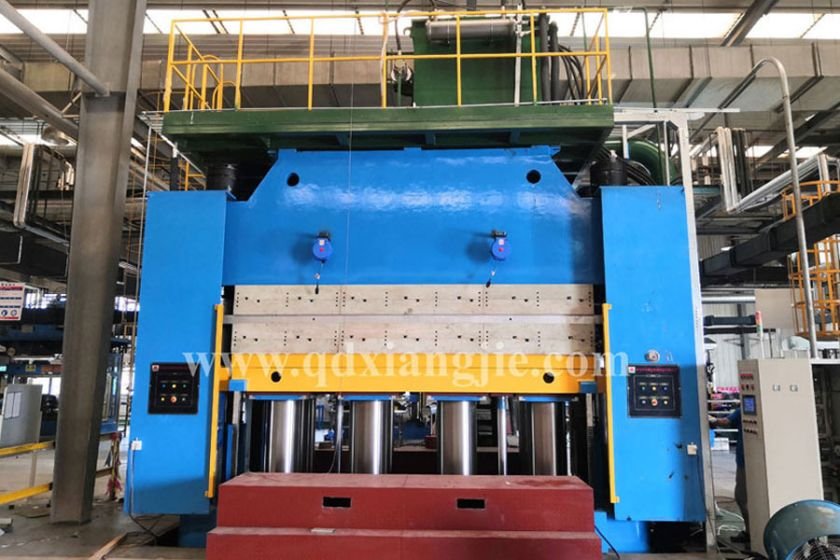

4000x1600-2000T heat exchanger seal ring plate vulcanizer



Product use:
Specially designed for large heat exchanger sealing ring, hydraulic station upper design, space saving.
Seals are suitable for large ships and nuclear power plant projects.


Product Specifications:
Equipment Specifications: 4000x1600x2
Equipment Pressure: 2000T
Oil Cylinder: φ450x8
Equipment Lifting Speed: 100mm/s
Equipment Lead Flatness Error: 0.1mm.


Product features:
1. The equipment is computer-aided design, and the finite element analysis is carried out as a whole. The overall structure is stable and reliable.
2. Advanced electrical control: PLC manual automatic dual-mode control, man-machine interface parameter input, setting, display, intelligent control of the process, can realize pressure and temperature time curve recording, can store 100 sets of mold process parameters, and use at any time.
3. New hydraulic power system: fast clamping speed, high efficiency and energy saving, superior pressure holding performance, sensitive action and stable operation.
4. Unique temperature control process: special process design of hot plate structure, advanced temperature control system.
