Qingdao Xiangjie's recent part of the vulcanizer project

Recently, Qingdao Xiangjie Machinery has tailored solid tire vulcanizing machine for customers, downward pressure fabric core conveyor belt production line and other equipment.

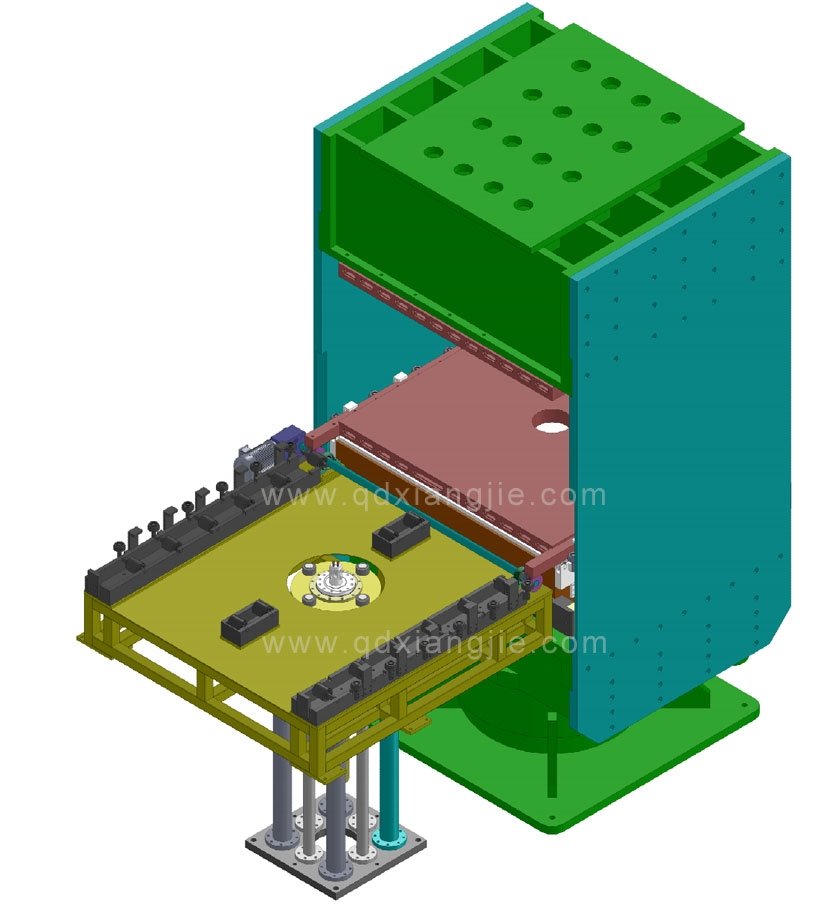

1. XLB-Q2000x2000-1400T solid tire vulcanizing machine



Customer: Continental Germany
Side plate structure
Cylinder: φ1000
Clamping force: 14MN
New hydraulic design, low power consumption and low noise.
The demoulding auxiliary machine is dual-purpose for active mold and ordinary mold.
New hot plate push-pull structure, no push-pull plate, the lower mold is in direct contact with the hot plate, the heat transfer effect is good, and the energy saving
is automatically saved and the pressure and temperature curve of each mold is recorded.

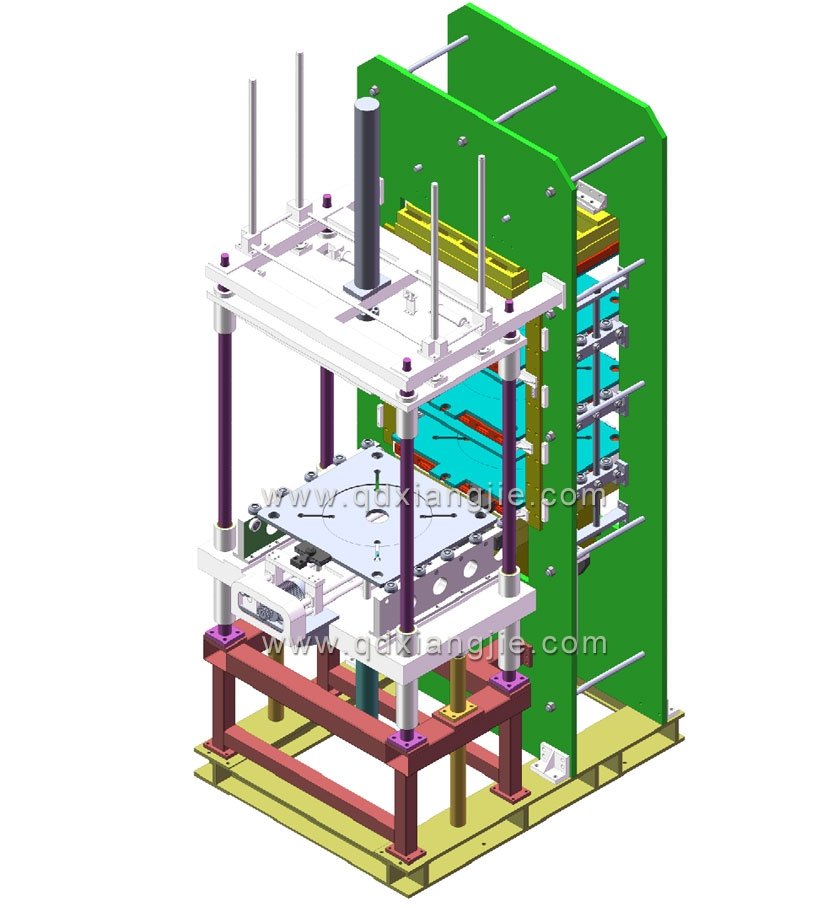

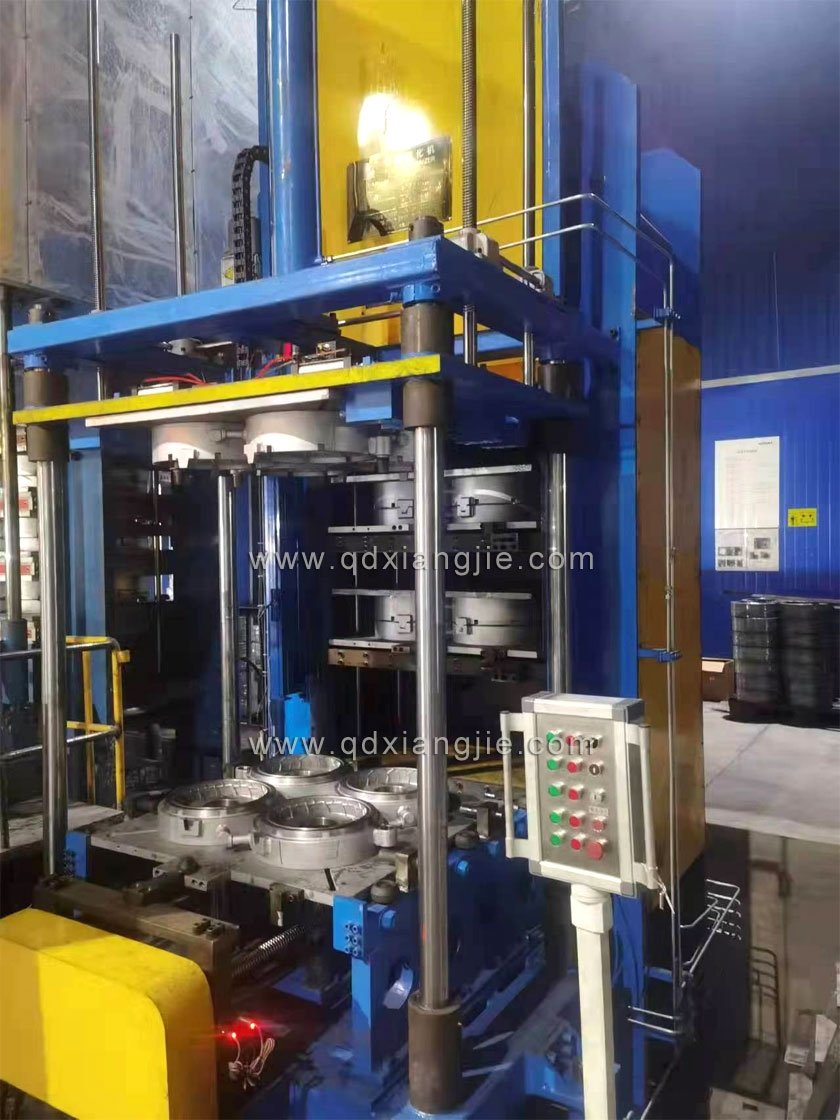

2. XLB-Q1000x1000x4-400T solid tire vulcanizing machine



Frame structure
Cylinder: φ550
Clamping force: 4MN
New hydraulic design, low power consumption and low noise.
The demoulding auxiliary is a multi-layer usable and fully automatic push-pull structure.
There is no need to manually lift the push-pull mold. The mold can be opened and closed in the air to improve efficiency.

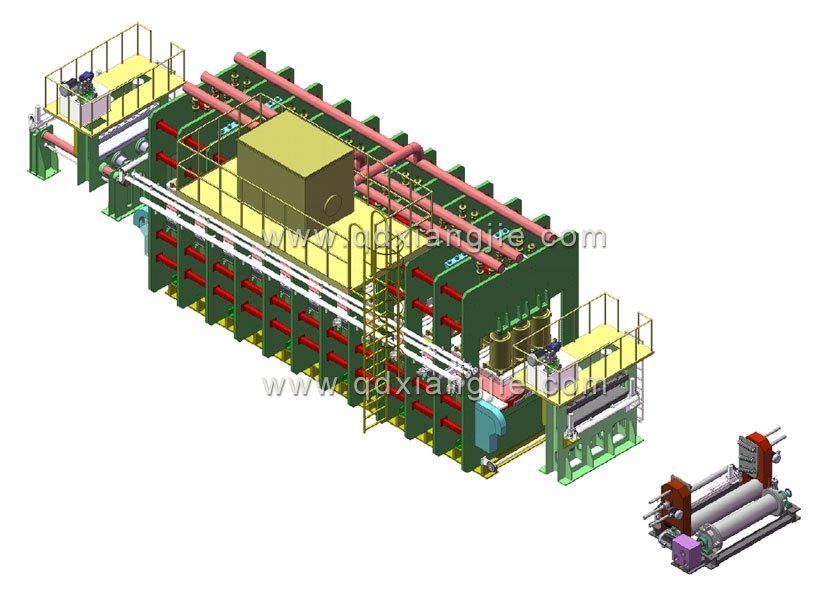

3. 1750X10000, downward pressure fabric core conveyor belt production line



New push-down design.
Cylinder:φ360x6
Clamping force:56MN
New hydraulic design, low power consumption and low noise.
The new design structure of the auxiliary lifting cylinder. It is equipped with mechanical and hydraulic double synchronous lifting mechanism.
Chain type depotting and blessing stretching double depotting system. The whole line is linked, and the data is automatically saved.
